Brakete

Tribco Braketex is a 100% Kevlar fiber composite material which offers a high wear resistance and low opposing surface wear. Braketex contains no metal, abrasives, or asbestos. It can be used in wet or dry applications.

Dynamic dry coefficient of friction: 0.36
Dynamic wet coefficient of friction: 0.10 to 0.15

Disc Brake Linings

Bremskerl disc brake linings are made of high quality materials which help evenly distribute energy across the entire disc surface. This helps reduce wear, increasing both linings and rotor life.

Typical applications: Mobile cranes, overhead cranes, public transit, trains

Single Universal Joint

Single universal joints from Belden Universal are more durable and perform better than standard industrial-grade models. Pin and block joints can transmit torques in the most demanding applications. For high-speed applications, needle bearings joints are available.

Torque range: 14 to 28,000 lb-in (1.6 to 3,163 Nm)
Typical applications: Metalworking machinery, printing machinery, conveyors, packaging systems, steering systems, machine tools

BFK457 Brakes

Available from Clutch Engineering, the Intorq BFK457 brake is a well-designed braking system that can be used for many mechanical systems, hoists, and other applications. This brake also has a failsafe functionality to increase the safety of equipment during a loss of power. It uses spring applied torque for braking and an electromagnetic method for release. The effective braking torque is applied through the use of multiple pressure spring components. These failsafe brakes are a great fit for many breaking applications, and feature integral fixing screws for quick and easy installation.

Torque range: 0.09 to 92 lb-ft (0.12 to 125 Nm)
Typical applications: Automation systems, hoists, material handling, wood working machinery

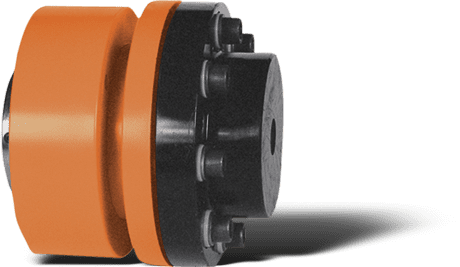

JAB Torque Limiters

Offered by Clutch Engineering, the Brunel JAB torque limiter is a great option for many conveyor systems, paper machinery, packaging equipment, and other mechanical systems. These high-quality torque limiters can be easily adjusted to your ideal torque setting and they can also be manually reset upon disengagement. During normal operation, there’s no slip, and the torque setting is maintained indefinitely. This creates a simpler way to keep your systems up-to-date, without the need for recurring manual adjustments. Special seals are also available for dusty operating conditions. The clutch can be installed in virtually any drive system, safeguarding against sudden spikes in torque, or gradual build-up of torque that may occur. Modifications are possible to provide manual lever operation of the clutch while retaining the overload release feature.

Release torque range: 10 to 4,000 lb-ft (14 to 5,500 Nm)
Typical applications: Conveyors, paper machinery, packaging equipment, machine tools

700 Series Gearboxes

Boston Gear 700 series worm gearboxes are available with ratio from 5:1 all the way to 3,600:1. They feature a large oil reservoir for efficient heat dissipation and lubrication. The rugged housing can optionally be coated or made from stainless steel for washdown applications

Torque range: 98 to 16,000 lb-in (11 to 1,807 Nm)

Typical applications: Material handling, conveyors, metals processing

BF Series Gearmotors

Bauer Gear Motor BF series shaft-mounted gearmotors are highly efficient and require little maintenance. Mounting is flexible, with the shaft, base, face, flange, and terminal box all variable. BF geared motors come with IP65 enclosures standard, and IP66 is available.

Torque range: 66 to 13,644 lb-ft (90 to 18,500 Nm)

Typical applications: Material handling, conveyors, metals processing

SMLB Thruster Brakes

Johnson SMLB thruster brakes are sturdy and reliable parts, offered by Clutch Engineering. These are commonly used for cranes, conveyors, ski lifts, and other mechanical applications. These thruster brakes are made with reliable fabricated steel components and asbestos-free friction linings that can handle high-temperature environments. A variety of additional special options are available, such as optional mechanical release levers, high temperature assemblies, and explosion-proof designs for your specific needs braking needs.

Torque range: 58 to 8,475 lb-ft (78 to 11,490 Nm)

Typical applications: Cranes, winches, stacker reclaimers, conveyors, ski lifts

PM Coupling

Clutch Engineering offers Renold PM flexible couplings for use with pumps, fans, compressors, and other industrial machinery. No lubrication or adjustment is required for these parts, which increased machinery uptime and improves your bottom line. These PM couplings allow for instances of axial, angular, and radial misalignment while reducing vibration and guarding against shock loads. This product can achieve low vibratory loads in driveline components through the selection of optimum stiffness characteristics. A variety of rubber elements are available for optimal performance. This product also seeks to eliminate torque amplifications through pre-compression of the rubber elements.

Torque range: 106 to 1,720,976 lb-ft (0.14 to 2,333 kNm)
Typical applications: Pumps, fans, compressors, cranes, conveyors

Safeset Coupling

Clutch Engineering offers Voith Turbo SafeSet torque limiting couplings for use with many critical mechanical systems. This product can protect your equipment from dangerous overloads and torque increases. In the dangerous event of a torque overload, shear tubes are designed to break instantly. This leads to the releasing of hydraulic pressure and a disconnection from the driveline. Replacing the shear tubes and repressurizing the system takes only minutes, allowing you to get your processes back up to speed in a minimal amount of time. SafeSet torque limiting couplings are especially capable of preventing machine damage in high value rotating equipment. Essentially, these couplings work like a mechanical fuses in the driveline, by protecting the system from sudden torque spikes and costly breakdowns.

Torque range: 737 to 14,751,242 lb-ft (1 to 20,000 kNm)
Typical applications: Steel mills, crushers, grinders, conveyors, excavators, gas turbines, trains

Clutchtex

Tribco Clutchtex is a 100% Kevlar fiber composite material which offers a high wear resistance and low opposing surface wear. It has excellent shock resistance and very low thermal conductivity. Clutchtex contains no metal, abrasives, or asbestos.

Dynamic dry coefficient of friction: 0.36
Dynamic wet coefficient of friction: 0.10 to 0.15

Drum Brake Linings

Bremskerl drum brake linings are available in a variety of sizes and designs to fit your equipment. Bremskerl produces high quality, asbestos-free friction materials with reduced wear rates.

Typical applications: Mobile cranes, overhead cranes, public transit, trains

Double Universal Joint

Belden Universal’s double universal joints are made to the same exacting standards as their single universal joints. Double universal joints allow for a larger operating angle, and using phased double joints allows for equal input and output speeds, provided operating angles are equal.

Torque range: 18 to 5,735 lb-in (2.1 to 648 Nm)
Typical applications: Metalworking machinery, printing machinery, conveyors, packaging systems, steering systems, machine tools

BFK458 Brakes

The Intorq BFK458 brake offered by Clutch Engineering is a highly-effective brake system with additional fail-safe applications. This brake is double spring-applied and electromagnetically released, which is aligned with fail-safe functionality that can apply breaking pressure in the absence of power. This product is especially useful for redundant breaking applications. A wide range of operating torques, standard voltages, and brake enclosures are offered by Clutch Engineering. These brakes can also be fitted with an optional hand release, to best suit your requirements and environment.

Torque range: 1 to 442 lb-ft (1.5 to 600 Nm)
Typical applications: Cranes, stage machinery, brake motors, wood working machinery

JB Torque Limiters

Available from Clutch Engineering, Brunel Corporation’s Type JB torque limiters are useful in many mechanical applications. These include conveyor systems, packaging systems, bottling machines, printing presses, and other mechanical systems. JB Torque Limiters are designed to provide instant release at the preset torque. Units can be supplied pilot bored or finish bored and keywayed. With these well-made products, when the overload releases the clutch, the hub travels one revolution before the clutch automatically re-engages. This useful feature makes JB torque limiters perfect for applications where a restart has to occur in the correct position. This is also relevant for when manual resetting is not a possibility. The hub may be fitted to either shaft and is intended to be axially constrained against a shoulder to resist the resetting force and locked by means of a set screw onto the shaft key.

Release torque range: 50 to 1,000 lb-ft (68 to 1,356 Nm)
Typical applications: Conveyors, packaging, bottling machines, printing presses, indexing drives

800 Series Gearboxes

Boston Gear 800 series helical gearboxes are compact and have a long service life. Ratios from 1.5:1 to 250:1 and a variety of input configurations allow 800 series reducers to cover a broad range of applications.

Torque range: 288 to 5,423 lb-in (32 to 612 Nm)

Typical applications: Material handling, conveyors, metals processing

BG Series Gearmotors

Bauer Gear Motor’s BG series helical gearmotors are robust and durable. Motors range from 0.03 to 75 kW. BG gearmotors come standard with IP65 protection or with optional IP66 enclosures.

Torque range: 14 to 13,644 lb-ft (20 to 18,500 Nm)

Typical applications: Material handling, conveyors, metals processing

CU/CX Disc Brakes

Clutch Engineering offers Johnson CU and CX Series DC magnetic disc brakes for use with applications such as cranes, conveyors, oil mill machinery, and key nuclear power machinery. These are great disc break solutions for many critical braking applications. They are dust and drip protected, and the terminal box uses an IP55 enclosure that helps to resist various dirt particles and moisture. They are used for service duty (CU) or emergency stop duty (CX).

Braking force: 809 to 50,600 lb (3.6 to 225 kN)

Typical applications: Cranes, conveyors, mining, steel mill machinery, nuclear power, oil field machinery

HTB Couplings

Clutch Engineering offers Renold HTB couplings, which are designed for bell housing applications and are intrinsically fail-safe for critical applications. These products offer advanced protection against severe shock loads, and no lubrication or adjustment is required. These features result in lower running costs and increased machinery uptimes. These couplings can also handle temperatures up to 400° F (200° C). An additional benefit is that these products can ensure continuous operation of the driveline in the unlikely event of rubber damage.

Torque range: 885 to 29,500 lb-ft (1.2 to 40 kNm)
Typical applications: Marine propulsion, compressors, generator sets, pumps, rail traction

Smartset Coupling

Available from Clutch Engineering, the Voith SmartSet torque limiting coupling has the ability to slip up to 120° without releasing. This advanced functionality is useful during short duration torque spikes that may occur during the operation of your system. If a torque overload lasts longer, the coupling will fully release in order to protect the other critical components of your driveline. The outstanding precision and reliability of Voith torque limiting couplings ensures smooth operation and less wear and tear – during the entire life span of your driveline.

Torque range: 737 to 14,751,242 lb-ft (1 to 20,000 kNm)
Typical applications: Steel mills, crushers, grinders, conveyors, excavators, gas turbines, trains

Twintec Materials

Bremskerl Twintec technology consists of an elastic underlayer with a friction lining surface. This provides higher dynamic friction coefficients while reducing lining wear by as much as 80%. Twintec can be combined with almost any Bremskerl material.

Telescoping Universal Joint

Belden telescoping universal joints are designed specifically to meet the needs of your application. Telescoping length allows for flexibility when mounting. Belden offers a wide variety of materials, coatings, and mounting arrangments to ensure optimal performance.

Typical applications: Metalworking machinery, printing machinery, conveyors, packaging systems, steering systems, machine tools

BFK470 Brakes

The Intorq BFK470 is a spring-applied, electromagnetically released brake available from Clutch Engineering. The product is sealed by an IP66 enclosure and can be equipped with an optional sealed hand-release. This reliable brake offers the benefit of fail-safe functionality, due to the fact that braking pressure is applied in a de-energized state. This creates options for the application of braking pressure in the event of a power failure. Corrosion protection of up to class C5 is available. The Cold Climate Version can operate in low temperatures down to -40° C (-40° F).

Torque range: 1.5 to 272 lb-ft (2 to 370 Nm)
Typical applications: Wind turbines, cranes, hoists, textile machinery

SE Torque Limiters

Offered by Clutch Engineering, the Brunel Safety Element (SE) torque limiters are compatible with many mechanical applications, including waste water treatment systems, mining systems, extruders, and other industrial systems. These well-made products are specifically designed to prevent overload in systems with very high torque. This modular product benefits your system by essentially allowing for a virtually unlimited torque capacity. SE clutches operate with no slip, and they completely disengage when a torque overload occurs. Special units are available for waste water, outdoor environments, and corrosive conditions. The internal parts of these torque limiters are packed with grease and they are also externally regreaseable. Eight “O” ring seals prevent contaminants from entering the unit while a grease vent allows added grease to escape.

Tangential force range: 2,250 to 38,000 lb (10,000 to 169,000 N)
Typical applications: Waste water treatment, mining, extruders

Centric Centrifugal Clutches

Clutch Engineering offers Boston Gear Centric Centrifugal Clutches (CCC) that are compatible with many applications for soft starts, or, conversely, to brake runaway systems. These extremely efficient clutches can function without the need for external controls. All CCC series clutches are custom designed to best fit your application, giving you great freedom to meet the needs of your systems. The spring controlled centrifugal clutch lets engines warm up before starting the load or to stand by at an idling speed, when it is used with engine drives. Due to this ability, the spring controlled centrifugal clutch is highly useful for industrial applications such as dual drives and engine driven pumping systems.

Power range: 40 to 2,280 HP (29 to 1,700 kW)

Typical applications: Turbines, generators, elevators, conveyors, pumps

BK Series Gearmotors

Bauer Gear Motor BK series bevel gearmotors are cost effective and available in a variety of gear ratios and mounting arrangements. Hollow shafts are available for even the smallest sizes of BK geared motors.

Torque range: 59 to 13,644 lb-ft (80 to 18,500 Nm)

Typical applications: Material handling, conveyors, metals processing

Rail Clamps

Johnson rail camps are designed to protect rail mounted equipment in the event of dangerously high winds or powerful storms. These specially designed rail products are also known as storm brakes. Using rail clamp products can give you more control over the safety and placement of your rail equipment, in virtually any weather condition. A variety of options such as custom mountings, coatings, and alternate materials are also available.

Holding capacity: 1,000 to 150,000 lb (4.4 to 667 kN)

Typical applications: Gantry cranes, container terminals, shipyards

Gear Coupling

Renold Gearflex gear couplings, offered by Clutch Engineering, feature a higher capacity tooth through optimized tooth design. These products reach an impressive power capacity within a small envelope and they have fantastic capacity for misalignment. Single and double engagement types are both available for this product option. These features, in combination with the improved properties of forged alloy material, provides a maximized power density in terms of both weight and diameter.

Torque range: 1,050 to 3,501,207 lb-ft (1.4 to 4,747 kNm)
Typical applications: Cranes, steel mills, mining machinery

14.105 and 14.115 Clutches and Brakes

Clutch Engineering offers the Intorq 14.105 and 14.115 electromagnetic clutches and brakes for use in applications such as gates, packaging machinery, and printing machinery. These clutches and brakes are useful parts that can be used in flange or shaft mounted applications. Additionally, they operate with the use of DC voltage and can transfer torque with no torsional backlash and have a very short run-in period. Some of these parts also feature patented spring pulls, as a component of the complete construction of these high quality products. 14.105 and 14.115 clutches and brakes require little maintenance, which improves machinery uptime, and they also have a long service life.

Torque range: 5.5 to 354 lb-ft (7.5 to 480 Nm)
Typical applications: Packaging machinery, gates, printing machinery

NLS Centrifugal Clutches

Available from Clutch Engineering, these Boston Gear NLS centrifugal clutches are compatible with many applications that include turbines, generators, elevator systems, conveyor systems, and pumps. The NLS centrifugal clutch is a rugged time-proven unit. When used with various industrial mechanical systems, this product allows systems to be started without load. In addition to aiding in the startup process, these clutches can protect against shock loads by slipping when overloaded. NLS centrifugal clutches are available in both free engagement and delayed engagement versions. When installed, this product is adept at allowing the motor or other driving source to accelerate to operating speed without load and to slipping automatically when overloaded.

Power range: 0.2 to 8,360 HP (0.15 to 6,234 kW)

Typical applications: Turbines, generators, elevators, conveyors, pumps

HiflexDrive Gearmotors

Bauer Gear Motor’s HiflexDRIVE gearmotor combines a BK series gear unit with a permanent magnet synchronous motor (PMSM). The PMSM maintains constand speed independent of load, making them perfect for applications with constant torque. Aseptic and stainless steel models are also available with ingress protection up to IP69K.

Torque range: 147 to 243 lb-ft (200 to 330 Nm)

Typical applications: Material handling, conveyors, food processing, pharmaceuticals

Rail Brakes

Johnson rail brakes help to protect critical rail mounted equipment during high winds and storms. These brakes use the spring force method of breaking to provide an effective solutions to these challenging environmental factors. Based on this method, these brakes have been developed to reliably apply pressure directly to the top of a rail head to add safety to many scenarios that involve rail mounted equipment. These products and additional custom options are available to cater to your unique needs for rail mounted equipment and rail braking.

Holding capacity: 10,000 to 100,000 lb (44 to 444 kN)

Typical applications: Gantry cranes, container terminals, shipyards

Geared Mill Spindles

Renold Ajax geared mill spindles offer high power density and long life. Renold uses a roll end piloting system to reduce bore wear and vibration.

Typical applications: Roughing mills, finishing mills

F Series Gearboxes

Renold’s F Series shaft mounted gear units are available in reduction ratios up to 5,600:1. A wide variety of mounting options and ratios are available. F series gear units are available as motorized, motor-ready, or as a reducer with a keyed input shaft.

Torque range: up to 12,170 lb-ft (16.5 kNm)
Typical applications: Conveyors, pumps, textile machinery, paper mill machinery

K Series Gearboxes

Renold K Series right angle helical bevel gear units are available in reduction ratios up to 35,000:1. A wide variety of mounting options and ratios are available. K series gear units are available as motorized, motor-ready, or as a reducer with a keyed input shaft.

Torque range: up to 24,340 lb-ft (33 kNm)
Typical applications: Conveyors, pumps, textile machinery, paper mill machinery

R Series Gearboxes

Renold’s R Series in-line helical gear units are available in reduction ratios up to 16,200:1. A wide variety of mounting options and ratios are available. R series gear units are available as motorized, motor-ready, or as a reducer with a keyed input shaft.

Torque range: up to 14,751 lb-ft (20 kNm)
Typical applications: Conveyors, pumps, textile machinery, paper mill machinery
