Collectors & Replacement Shoes

125A Single Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
21″ long pigtails, 8 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 500A conductor bar only.

200A Single Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
42″ long pigtails, 2 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 700A – 1500A conductor bar only.

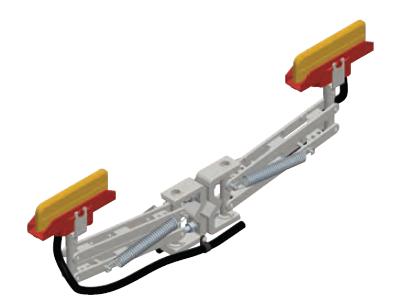

250A Tandem Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
21″ long pigtails, 8 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 500A conductor bar only.

300A Single Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
42″ long pigtails, 2 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 700A – 1500A conductor bar only. Note that the 300A version is the same as the 200A, except with an extra tension spring on the arm.

400A Tandem Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
42″ long pigtails, 2 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 700A – 1500A conductor bar only.

600A Tandem Collector

Hevi-Bar II “V-Contact” Collectors provide superior conductivity by accurately tracking in the conductor bar groove.
42″ long pigtails, 2 AWG, are supplied on the collector. Customer supplied wiring connects to the collector pigtail with in-line connectors.
Used on 700A – 1500A conductor bar only. Note that the 600A version is the same as the 400A, except with one extra tension spring on each arm.

Replacement Shoe
