51785

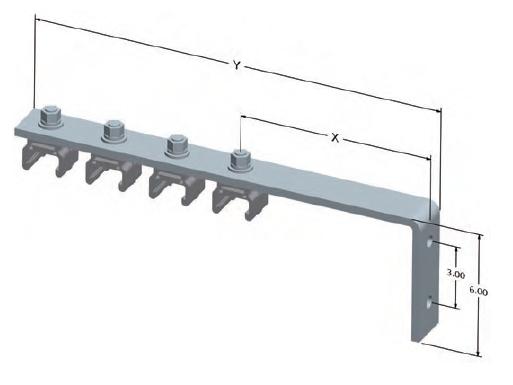

All holes to accept hangers are 3″ on-center and 0.56″ diameter (to accept 3/8″ diameter hanger bolts).
Mounts to vertical web of beam. Bracket is 2 1/2″ wide by 3/8″ thick.

Specifications

Amperage Rating

500 A

Material

Plated Steel

Type

Bracket with four pre-installed hangers – standard Polycarbonate

Weight

5.2 lb

X

9

Y

19 1/4

Manufacturer

N/A
